AWS IoT EventsをCDKで構築してみた(TypeScript)

April 20, 2022

#AWS

#IoT Events

#CDK

#TypeScript

概要

実務でIoT Eventsを触ったので活用例を記事にしてみたの続きです

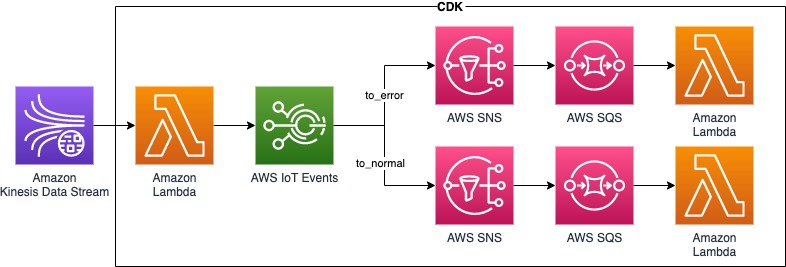

AWS IoT Eventsの設定をCDKで構築してみました。まずはアーキテクチャイメージから、アーキテクチャイメージ図

ディレクトリ構成

root/
  ├ bin/
  │  └ cdk.ts
  └ lib/
     ├ IotEventsStack.ts
     └ utils/
          └ iotEventsModule/
                 ├ createSnsTopic.ts
                 ├ createIotEvents.ts
                 ├ createInputMessageLambda
                 └ createSqsLambda

IotEventsStack.ts

スタック単位の定義ファイルです。ここで各々のモジュールを呼び出しています。

import { Construct, Stack, StackProps } from "@aws-cdk/core";
import { createSnsTopic } from "./utils/iotEventsModule/createSnsTopic";
import { createIotEvents } from "./utils/iotEventsModule/createIotEvents";
import { createInputMessageLambda } from "./utils/iotEventsModule/createInputMessageLambda";
import { createSqsLambda } from "./utils/iotEventsModule/createSqsLambda";
import { lookupStream, lookupLambdaNetwork } from "./utils/common/lookups";

export interface IoTEventsStackprops extends StackProps {
  vpcName: string;
  lambdaSecurityGroupId: string;
  lambdaPrivateSubnet1aId: string;
  lambdaPrivateSubnet1cId: string;
  streamName: string;
  envName: string;
  envKey: string;
  env: {
    account: string;
    region: string;
  };
}

export class IoTEventsStack extends Stack {
  constructor(scope: Construct, id: string, props: IoTEventsStackprops) {
    super(scope, id, props);

    const stream = lookupStream(this, props.streamName);
    const { vpc, lambdaSubnets, lambdaSecurityGroup } = lookupLambdaNetwork(this, props);

    const IoTEventsToErrorSnsTopic = createSnsTopic(this, {
      modulePrefix: `${props.envName}-IoTEvents-to-error`
    });
    const IoTEventsToNormalSnsTopic = createSnsTopic(this, {
      modulePrefix: `${props.envName}-IoTEvents-to-normal`
    });

    const IoTEventsIotEvents = createIotEvents(this, {
      modulePrefix: `${props.envName}-IoTEvents`,
      toErrorTopicArn: IoTEventsToErrorSnsTopic.topicArn,
      toNormalTopicArn: IoTEventsToNormalSnsTopic.topicArn
    });

    // IotEvents前処理lambda
    const IoTEventsInputMessageLambda = createInputMessageLambda(this, {
      entry: "./src/lambda/IoTEvents-put-message-iotevents-handler/index.ts",
      modulePrefix: `${props.envName}-IoTEvents-put-message-iotevents`,
      lambdaTimeout: 900,
      lambdaMemorySize: 1024,
      modelInput: IoTEventsIotEvents.modelInput,
      stream,
      envKey: props.envKey,
      env: props.env
    });

    const IoTEventsToErrorSqsLambda = createSqsLambda(this, {
      vpc,
      subnets: lambdaSubnets,
      securityGroups: [lambdaSecurityGroup],
      entry: "./src/lambda/IoTEvents-to-error-handler/index.ts",
      modulePrefix: `${props.envName}-IoTEvents-to-error-lambda`,
      sqsRetentionPeriod: 60 * 3,
      sqsVisibilityTimeout: 60,
      topic: IoTEventsToErrorSnsTopic,
      lambdaTimeout: 59,
      lambdaMemorySize: 512,
      envKey: props.envKey
    });

    const IoTEventsToNormalSqsLambda = createSqsLambda(this, {
      vpc,
      subnets: lambdaSubnets,
      securityGroups: [lambdaSecurityGroup],
      entry: "./src/lambda/IoTEvents-to-normal-handler/index.ts",
      modulePrefix: `${props.envName}-IoTEvents-to-normal`,
      sqsRetentionPeriod: 60 * 3,
      sqsVisibilityTimeout: 60,
      topic: IoTEventsToNormalSnsTopic,
      lambdaTimeout: 59,
      lambdaMemorySize: 512,
      envKey: props.envKey
    });
  }
}

createIotEvents.ts

ここでは実際のCDKモジュールを呼び出してリソースを定義しています。

import { Stack } from "@aws-cdk/core";
import { CfnInput, CfnDetectorModel } from "@aws-cdk/aws-iotevents";
import { Role, ServicePrincipal, PolicyStatement } from "@aws-cdk/aws-iam";

export interface CreateIotEventsprops {
  modulePrefix: string;
  toErrorTopicArn: string;
  toNormalTopicArn: string;
}

export function createIotEvents(
  stack: Stack,
  props: CreateIotEventsprops
) {
  const modelInput = new CfnInput(stack, `${props.modulePrefix}-input`, {
    inputName: `${props.modulePrefix}_input`.replace(/-/g, "_"),
    inputDefinition: {
      attributes: [
        { jsonPath: "id" },
        { jsonPath: "status" },
        { jsonPath: "type" },
        { jsonPath: "timestamp" }
      ]
    }
  });

  const modelRole = new Role(stack, `${props.modulePrefix}-model-role`, {
    assumedBy: new ServicePrincipal("iotevents.amazonaws.com"),
  });

  modelRole.addToPolicy(
    new PolicyStatement({
      resources: [props.toErrorTopicArn, props.toNormalTopicArn],
      actions: ["sns:Publish"],
    })
  );

  const detectorModelDefinition = {
    initialStateName: "Normal",
    states: [
      {
        stateName: "Normal",
        onInput: {
          events: [],
          transitionEvents: [
            {
              eventName: "to_error",
              condition: `$input.${modelInput.inputName}.status == 1`,
              actions: [
                {
                  sns: {
                    targetArn: props.toErrorTopicArn,
                    payload: {
                      contentExpression: `'{\"id\": \"\${$input.${modelInput.inputName}.id}\",
                                            \"status\": \${$input.${modelInput.inputName}.status},
                                            \"type\": \"\${$input.${modelInput.inputName}.type}\",
                                            \"timestamp\": \${$input.${modelInput.inputName}.timestamp}}'`,
                      type: "JSON"
                    }
                  }
                },
                {
                  setVariable: {
                    variableName: "previousTimestamp",
                    value: `$input.${modelInput.inputName}.timestamp`
                  }
                },
                {
                  setVariable: {
                    variableName: "id",
                    value: `$input.${modelInput.inputName}.id`
                  }
                }
              ],
              nextState: "Error"
            }
          ]
        },
        onEnter: {
          events: []
        },
        onExit: {
          events: []
        }
      },
      {
        stateName: "Error",
        onInput: {
          events: [],
          transitionEvents: [
            {
              eventName: "to_normal",
              condition: `$input.${modelInput.inputName}.status == 0 && $variable.previousTimestamp < $input.${modelInput.inputName}.timestamp`,
              actions: [
                {
                  sns: {
                    targetArn: props.toNormalTopicArn,
                    payload: {
                      contentExpression: `'{\"id\": \"\${$variable.id}\",
                                            \"status\": \${$input.${modelInput.inputName}.status},
                                            \"type\": \"\${$input.${modelInput.inputName}.type}\",
                                            \"timestamp\": \${$input.${modelInput.inputName}.timestamp}}'`,
                      type: "JSON"
                    }
                  }
                }
              ],
              nextState: "Normal"
            }
          ]
        },
        onEnter: {
          events: []
        },
        onExit: {
          events: []
        }
      }
    ]
  };

  const detectorModel = new CfnDetectorModel(stack, `${props.modulePrefix}-model`, {
    detectorModelDefinition,
    detectorModelName: `${props.modulePrefix}-model`,
    key: "type",
    evaluationMethod: "BATCH",
    roleArn: modelRole.roleArn,
  });

  const iotEvents = {
    modelInput,
    detectorModel
  };

  return iotEvents;
}

ここでの主なリソースはCfnInput, CfnDetectorModel, Roleです。

CfnInput 検知器(detector)に送るデータスキーマを定義

CfnDetectorModel ここで検知器のリソースを定義、プロパティについて少し解説します detectorModelDefinitionでは検知器の構成を定義しています。ここは一から作るのは大変なのでAWSコンソールのGUIで作ってからexportするのが楽でした。上記の例ではstatesの中にNormalとErrorの2つのState(状態)を定義しています。 onInput.transitionEventsでイベントを定義することができ、SNSのpublish、変数などを編集できます。イベントの条件はconditionで設定され、上記ではstatusが1となったタイミングで遷移するように設定しています。

Role IAMのロールを定義しています。上記では検知器からSNSへpublishする必要があるため、SNSの操作権限を付与しています。

デプロイするとこのような検知器が作られます検知器イメージ図

createSnsTopic.ts

SNSリソースを定義しています。テンプレートとして残しておきます。

import { PolicyStatement, ServicePrincipal } from "@aws-cdk/aws-iam";
import { Stack } from "@aws-cdk/core";
import { Topic, TopicPolicy } from "@aws-cdk/aws-sns";

export interface CreateSnsTopicsprops {
  modulePrefix: string
}

export function createSnsTopic(
  stack: Stack,
  props: CreateSnsTopicsprops
) {
  const topic = new Topic(stack, `${props.modulePrefix}-topic`);

  const topicPolicy = new TopicPolicy(stack, `${props.modulePrefix}-topic-policy`, {
    topics: [topic]
  });

  topicPolicy.document.addStatements(new PolicyStatement({
    actions: ["SNS:Publish"],
    principals: [new ServicePrincipal("iotevents.amazonaws.com")],
    resources: [topic.topicArn]
  }));

  return topic;
}

createInputMessageLambda.ts

こちらは検知器へPutMessageするためのLambdaを定義しています。 "iotevents:BatchPutMessage"で検知器へPutMessageするための権限、 "kinesis:GetRecords"でKinesis Streamからレコードを取得するための権限を定義しています。 Lambda内の処理は割愛します。

import { Runtime, Tracing, StartingPosition } from "@aws-cdk/aws-lambda";
import { NodejsFunction } from "@aws-cdk/aws-lambda-nodejs";
import { Duration, Stack, Tags } from "@aws-cdk/core";
import { ManagedPolicy, PolicyStatement, Role, ServicePrincipal } from "@aws-cdk/aws-iam";
import { CfnInput } from "@aws-cdk/aws-iotevents";
import { IStream } from "@aws-cdk/aws-kinesis";
import { LogGroup, RetentionDays } from "@aws-cdk/aws-logs";
import { KinesisEventSource } from "@aws-cdk/aws-lambda-event-sources";

export interface CreateInputMessageLambdaprops {
  entry: string;
  modulePrefix: string;
  lambdaTimeout: number;
  lambdaMemorySize: number;
  modelInput: CfnInput;
  stream: IStream;
  envKey: string;
  env: {
    account: string;
    region: string;
  };
}

export function createInputMessageLambda(
  stack: Stack, props: CreateInputMessageLambdaprops
) {
  const lambdaRole = new Role(stack, `${props.modulePrefix}-lambda-role`, {
    roleName: `${props.modulePrefix}-lambda-role`,
    assumedBy: new ServicePrincipal("lambda.amazonaws.com"),
  });

  lambdaRole.addManagedPolicy(
    ManagedPolicy.fromAwsManagedPolicyName("service-role/AWSLambdaBasicExecutionRole")
  );

  lambdaRole.addToPolicy(
    new PolicyStatement({
      resources: [`arn:aws:iotevents:${props.env.region}:${props.env.account}:input/${props.modelInput.inputName}`],
      actions: ["iotevents:BatchPutMessage"],
    })
  );

  lambdaRole.addToPolicy(
    new PolicyStatement({
      resources: ["*"],
      actions: ["kinesis:GetRecords"],
    })
  );

  const lambda = new NodejsFunction(stack, `${props.modulePrefix}-lambda`, {
    entry: props.entry,
    handler: "handler",
    runtime: Runtime.NODEJS_14_X,
    timeout: Duration.seconds(props.lambdaTimeout),
    functionName: `${props.modulePrefix}-lambda`,
    memorySize: props.lambdaMemorySize,
    role: lambdaRole,
    tracing: Tracing.ACTIVE,
    environment: {
      IOT_EVENTS_INPUT_NAME: props.modelInput.inputName as string
    },
  });

  new LogGroup(stack, `${props.modulePrefix}-lambda-log-group`, {
    logGroupName: `/aws/lambda/${lambda.functionName}`,
    retention: RetentionDays.ONE_MONTH
  });

  Tags.of(lambda).add("env", props.envKey);
  Tags.of(lambda).add("service", "app");

  // Kinesis-Lambda setting
  lambda.addEventSource(new KinesisEventSource(props.stream, {
    batchSize: 100,
    startingPosition: StartingPosition.TRIM_HORIZON
  }));

  return lambda;
}

createSqsLambda.ts

検知器の後続処理のLambdaを定義しています。 SNSのサブスクリプション、SQSリソース定義、Lambdaリソース定義を一括で設定しています。

import { ISecurityGroup, ISubnet, IVpc } from "@aws-cdk/aws-ec2";
import { Runtime, Tracing } from "@aws-cdk/aws-lambda";
import { NodejsFunction } from "@aws-cdk/aws-lambda-nodejs";
import { Duration, Stack, Tags } from "@aws-cdk/core";
import { ManagedPolicy, PolicyStatement, Role, ServicePrincipal } from "@aws-cdk/aws-iam";
import { Queue, QueuePolicy } from "@aws-cdk/aws-sqs";
import { ITopic } from "@aws-cdk/aws-sns";
import { SqsSubscription } from "@aws-cdk/aws-sns-subscriptions";
import { LogGroup, RetentionDays } from "@aws-cdk/aws-logs";
import { SqsEventSource } from "@aws-cdk/aws-lambda-event-sources";

export interface CreateSqsLambdaprops {
  vpc: IVpc;
  subnets: ISubnet[];
  securityGroups: ISecurityGroup[];
  entry: string;
  modulePrefix: string;
  sqsRetentionPeriod: number;
  sqsVisibilityTimeout: number;
  topic: ITopic;
  lambdaTimeout: number;
  lambdaMemorySize: number;
  envKey: string;
}

export function createSqsLambda(
  stack: Stack, props: CreateSqsLambdaprops
) {
  // SQS setting
  const queue = new Queue(stack, `${props.modulePrefix}-queue`, {
    receiveMessageWaitTime: Duration.seconds(20),
    retentionPeriod: Duration.seconds(props.sqsRetentionPeriod),
    visibilityTimeout: Duration.seconds(props.sqsVisibilityTimeout)
  });

  const queuePolicy = new QueuePolicy(stack, `${props.modulePrefix}-queue-policy`, {
    queues: [queue]
  });

  queuePolicy.document.addStatements(new PolicyStatement({
    actions: ["sqs:SendMessage"],
    principals: [new ServicePrincipal("sns.amazonaws.com")],
    resources: [queue.queueArn],
    conditions: {
      ArnEquals: {
        "aws:SourceArn": props.topic.topicArn
      }
    }
  }));

  // Lambda setting
  const lambdaRole = new Role(stack, `${props.modulePrefix}-lambda-role`, {
    roleName: `${props.modulePrefix}-lambda-role`,
    assumedBy: new ServicePrincipal("lambda.amazonaws.com"),
  });

  lambdaRole.addManagedPolicy(
    ManagedPolicy.fromAwsManagedPolicyName("service-role/AWSLambdaVPCAccessExecutionRole")
  );

  lambdaRole.addToPolicy(
    new PolicyStatement({
      resources: [queue.queueArn],
      actions: ["sqs:ReceiveMessage", "sqs:DeleteMessage", "sqs:GetQueueAttributes"],
    })
  );

  lambdaRole.addToPolicy(
    new PolicyStatement({
      actions: ["ssm:GetParameter"],
      resources: [`arn:aws:ssm:${stack.region}:${stack.account}:parameter/HogeHoge/Aurora/Secrets`],
    })
  );

  const lambda = new NodejsFunction(stack, `${props.modulePrefix}-lambda`, {
    entry: props.entry,
    handler: "handler",
    runtime: Runtime.NODEJS_14_X,
    timeout: Duration.seconds(props.lambdaTimeout),
    functionName: `${props.modulePrefix}-lambda`,
    memorySize: props.lambdaMemorySize,
    role: lambdaRole,
    vpc: props.vpc,
    vpcSubnets: props.vpc.selectSubnets({
      subnets: props.subnets,
    }),
    securityGroups: props.securityGroups,
    tracing: Tracing.ACTIVE,
    environment: {
      AURORA_ACCESS_SECRETS_NAME: "/HogeHoge/Aurora/Secrets",
      S3_CLIENT_PARAM: JSON.stringify({
        region: stack.region,
        signatureVersion: "v4",
      }),
      SSM_CLIENT_PARAM: JSON.stringify({
        region: stack.region,
      }),
    },
    bundling: {
      commandHooks: {
        beforeInstall(inputDir: string, outputDir: string): string[] {
          return [``];
        },
        beforeBundling(inputDir: string, outputDir: string): string[] {
          return [``];
        },
        afterBundling(inputDir: string, outputDir: string): string[] {
          return [
            `cp ${inputDir}/node_modules/.prisma/client/query-engine-rhel-openssl-1.0.x ${outputDir}`,
            `cp ${inputDir}/prisma/schema.prisma ${outputDir}`,
          ];
        },
      },
    },
  });

  new LogGroup(stack, `${props.modulePrefix}-lambda-log-group`, {
    logGroupName: `/aws/lambda/${lambda.functionName}`,
    retention: RetentionDays.ONE_MONTH
  });

  Tags.of(lambda).add("env", props.envKey);
  Tags.of(lambda).add("service", "app");

  //SQS-SNS setting
  props.topic.addSubscription(new SqsSubscription(queue));

  // SQS-Lambda setting
  queue.grantConsumeMessages(lambda);
  lambda.addEventSource(new SqsEventSource(queue, {}));

  return lambda;
}

bin/cdk.ts

トップレベルのファイルです。このファイルを実行することでCDKのデプロイを実行できます。

#!/usr/bin/env node
import * as cdk from "@aws-cdk/core";
import "source-map-support/register";
import { IotEventsStack } from "../lib/IotEventsStack";

const app = new cdk.App();

const argContext = "environment";
const envKey = app.node.tryGetContext(argContext);
if (envKey === undefined) {
  throw new Error(`環境名を指定してください。 ex) cdk deploy -c ${argContext}=dev`);
}
const envVals = app.node.tryGetContext(envKey);
if (envVals === undefined) throw new Error(`${envKey}の環境設定がcdk.jsonに含まれていません`);


new IotEventsStack(app, "IotEventsStack", {
  vpcName: envVals.vpcName,
  lambdaSecurityGroupId: envVals.lambdaSecurityGroupId,
  lambdaPrivateSubnet1aId: envVals.lambdaPrivateSubnet1aId,
  lambdaPrivateSubnet1cId: envVals.lambdaPrivateSubnet1cId,
  streamName: envVals.IotEventsStreamName,
  envName: envVals.envName,
  envKey,
  env: envVals.env,
});

最初のapp.node.tryGetContext(argContext)で後述するcdkコマンドの-cに入る値が代入されます。次のapp.node.tryGetContext(envKey)はcdk.jsonで定義した値を引っ張っています。

CDKコマンド

// CloudFormationテンプレート出力
$ cdk synth -c environment=dev IotEventsStack --profile <profile名>

// 差分表示
$ cdk diff -c environment=dev IotEventsStack --profile <profile名>

// デプロイ
$ cdk deploy -c environment=dev IotEventsStack --profile <profile名>

← Back to home
